1. DLLA141P2146 Injector Nozzle’s Basic Information

Title	Common Rail DLLA141P2146 Injector Nozzle China Made New	Brand
SKU1	G4X9LA141P2146	XINGMA
SKU2	G1C10LA141P2146	XINGMA
SKU3	G1X9LA141P2146	XINGMA

2.  DLLA141P2146 Injector Nozzle’s Common Written Part Number

Injector Nozzle Order Number	Injector Nozzle Engraved Number
0433172146	DLLA141P2146

3.  DLLA141P2146 Injector Nozzle’s Application Information for Injectors

（1） DLLA141P2146 Injector Nozzle’s Application for Injectors Part Number

Injector Part Number	Injector Series	System Pressure	Re-manufactured Part Number	System Pressure
0 445 120 134	CRIN2-16	1600
0 445 120 455	CRIN1-14/16	1600

（2） DLLA141P2146 Injector Nozzle’s Car Model Matching Information

Injector Part Number	Car Number	OE Number	OE Number
0 445 120 134	BFCEC (BEIJING FOTON CUMM.)	5283275
	FOTON (BEIJING FUTIAN ENVIR.)	J5283275A7596
0 445 120 455	CUMMINS	5 367 161

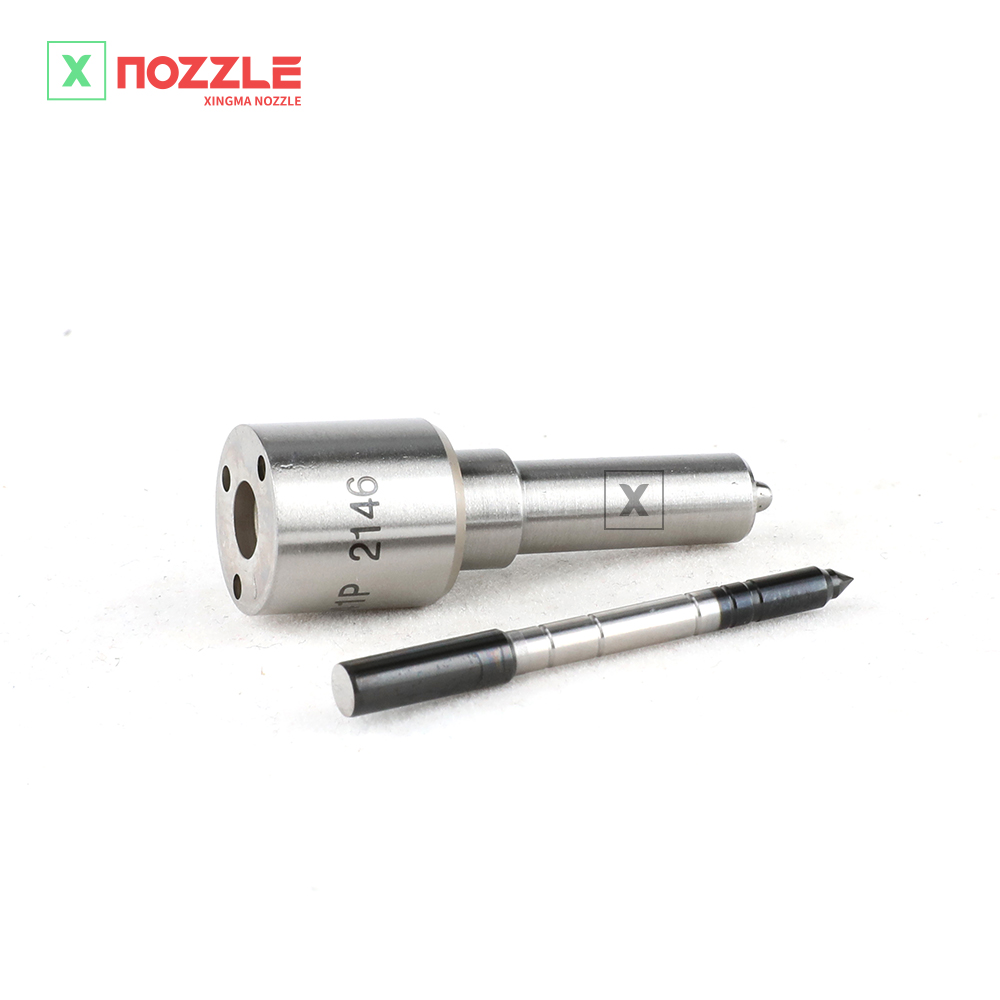

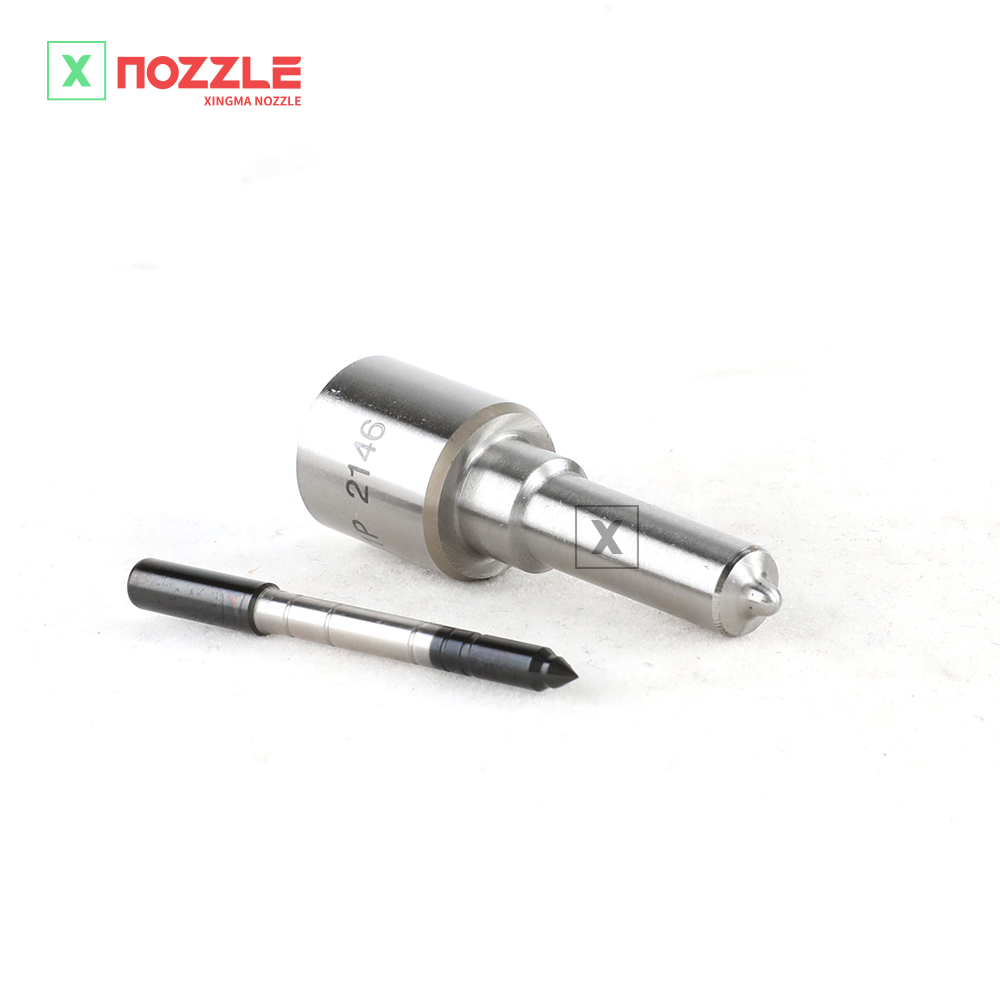

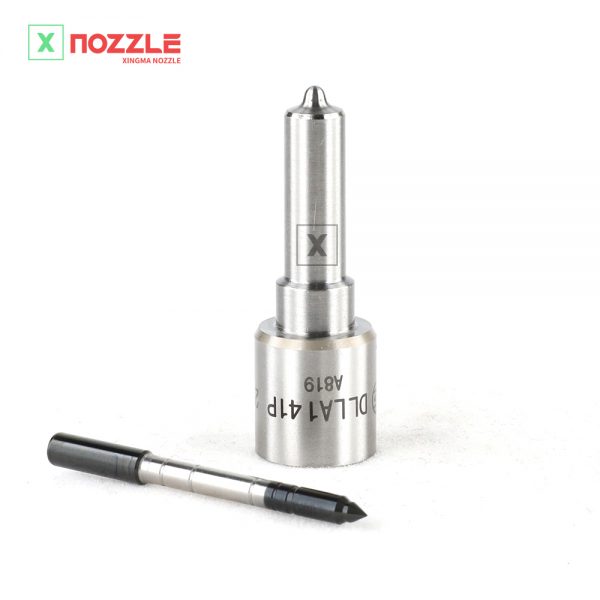

4. DLLA141P2146 Injector Nozzle’s Specifications and Dimensions Parameters

Injector Nozzle Size： 6 cm*1.5cm *1.5 cm

Injector Nozzle Barrel Dimensions：7 cm *2 cm *2 cm

Single Injector Nozzle Weight：0.03kg

Injector Nozzle 10 PCS Per Box：10 cm *8 cm *4cm

Injector Nozzle Weight 10 PCS Per Box ：0.3kg

Injector Nozzle Quality：China Made New Injector Nozzle

Injector Nozzle MOQ：10 PCS

5. DLLA141P2146 Injector Nozzle Quality Control

（1）Injector Nozzle Testing

All parts of the injector nozzle are subjected to precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.

（2）Injector Nozzle Inspection

The factory inspection of the injector nozzle is undergone full inspection, random inspection, and batch inspection three inspections. Different brands of test benches are used to test the same injector nozzle for a total of no less than three times for factory inspection, and the fuel injector installation testing environment are progressed in dust-free workshop.

（3）Injector Nozzle Installation

When matching the valve cap and valve steam, Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each valve assembly meets the factory standards and use standards.

6. DLLA141P2146 Injector Nozzle’s Customized Service

（1）Injector Nozzle’s Customized Service：Meet the customized needs of OEM manufacturers for shell lettering (logo, nozzle part number, date and series number), nozzle without lettering, nozzle tube, nozzle box customized etc.

（2）Injector Nozzle’s Customized Service Quantity Requirements：

The purchased of Customized injector nozzle’s shell lettering or without lettering are no less than 100 pieces.

The purchased of Customized injector nozzle tubes are no less than 2000-3000 pieces.

The purchased of customized injector nozzle boxes are no less than 1000 pieces.

Customized products involve the need of specify logo, the OEM manufacturer needs to provide trademark authorization and the sample of logo image file.

Once the customized injector nozzle is sold, it can’t be returned or exchanged if there is no quality problems.

7. DLLA141P2146 Injector Nozzle Technical Support Obtaining Methods

（1）Injector Nozzle Technical File, visit http://shumatt.com to get the technical file

（2）Injector Technical Videos

Facebook：Visit https://www.facebook.com/hison.li constantly follow can get more information.

YouTube：Visit https://www.youtube.com/channel/UCByvYBx7VjV_mAfxh_Hu-aw to get the technical videos，and can learn more information if you follow .

Shumatt: Visit http://shumatt.com to get the technical videos.

（3）Injector Nozzle Information Query Software

TruckBook Parts EPC APP，Android/Apple App Store download and install，visit http://shumatt.com to get the download and installation tutorial

（4）Search The injector nozzle test data through TruckBook Parts EPC APP.

8. DLLA141P2146 Injector Nozzle’s Shipping Packing

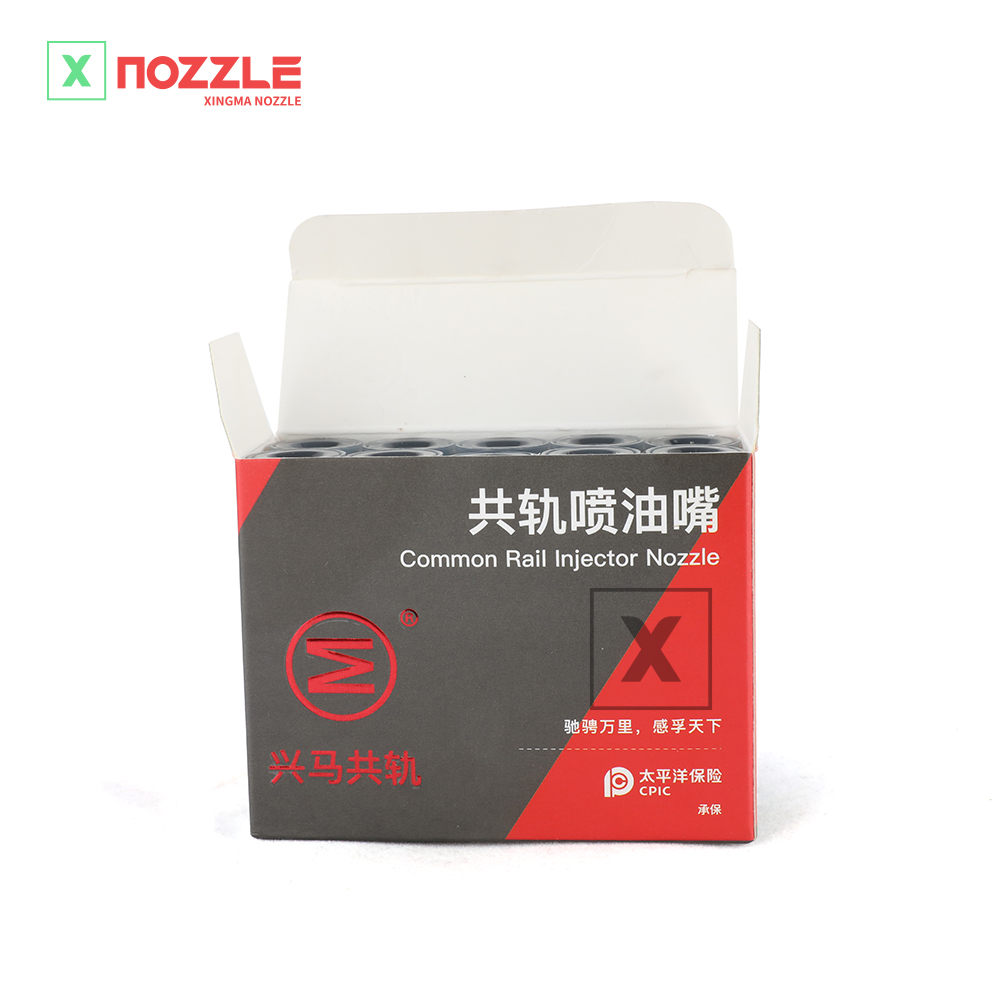

Domestic express packaging：Usually wrapped in waterproof scotch tape, such as picture No.2.

International express packaging：Wrapped with waterproof yellow tape After wrapping the black protective film, such as picture No. 3.

Pallet Shipping：Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, such as picture No. 4,

Also, the products can be packaged according to customers’ requirements.

• The packing tray is made of plastic and can be recycled.
• Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.

Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury

Pic No.1

International express packaging：

Wrapped with yellow tape after wrapping black protective film





Pic No.2

Pallet Shipping：Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties
